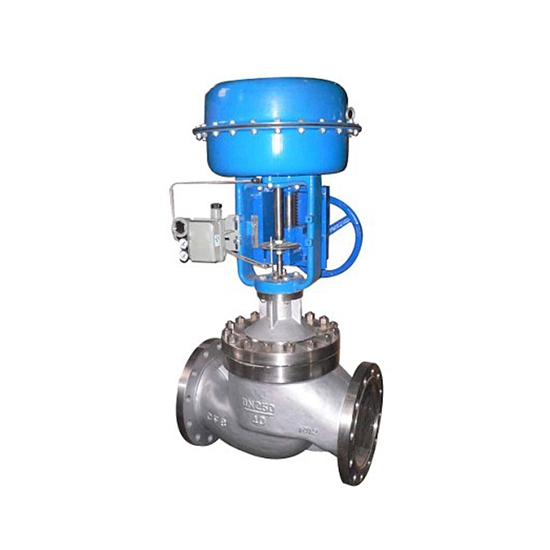

ZJHM series pneumatic diaphragm control valve sleeve is a pressure balanced valve. Equipped with multi spring actuator, compact overall structure, star light, good stability. The fluid channel is the 3 line type, the pressure drop loss, allowing a large pressure difference, low noise, large flow capacity. Widely used for precise control of gases, liquids and other media technology parameters such as: pressure, temperature, flow, liquid level maintained at a given value. Especially applicable to the large flow rate, pressure, leakage requirements is not high.
This series of products are the standard and adjust the cut-off type, bellows seal type, jacket type insulation and other varieties. Product nominal pressure level of a user ~10, 16, 40, 64, valve caliber range by DN20~500, applicable for the fluid temperature from -196 ℃ ~+560 ℃, various grades of its range. The leakage of standard IV, V and VI. Flow characteristics such as linear or percentage. A variety of products, specifications are available.
Characteristic.
1 the balance valve structure, the axial unbalanced force is small, allowing a large pressure difference, stability. Sleeve good interchangeability, convenient assembly and disassembly, easy repair.
2 full metal valve structure is suitable for various occasions, to achieve the IV level leakage standard, soft sealing structure of valve to achieve the VI level leakage standard.
3 valve designed according to principles of fluid mechanics such as low flow resistance load into surface flow, large adjustable range, inherent adjustable ratio 50:1, rated flow coefficient of 30%.
4 implementing agencies for the use of multi spring structure, height reduction of 307%. To reduce the weight of 30%.
5.ZJHMW shaped bellows sealed valve, the stem form of mobile complete sealing, blocking the fluid leakage.

The main technical parameters of the sleeve valve

Main performance index

Note: This product performance accords with GB/T4213 - 2008

To allow pressure gas off type (positive effect) metal sealing type allows differential pressure gauge Company： MPa

氣關(guān)式（正作用）金屬密封型允許壓差表 Company： MPa

氣關(guān)式（正作用）金屬密封型允許壓差表 Company： MPa

氣關(guān)式（正作用）金屬密封型允許壓差表 Company： MPa

Note that allows differential pressure gauge:
Packing material for the PTFE
Flow direction and valve medium off in the opposite direction
Leakage in grade IV metal seal type
Number of the nominal pressure, pressure, temperature limits
Bellows seal type P2 ≠ 0 re check;

Dimensions and weight Company：mm
